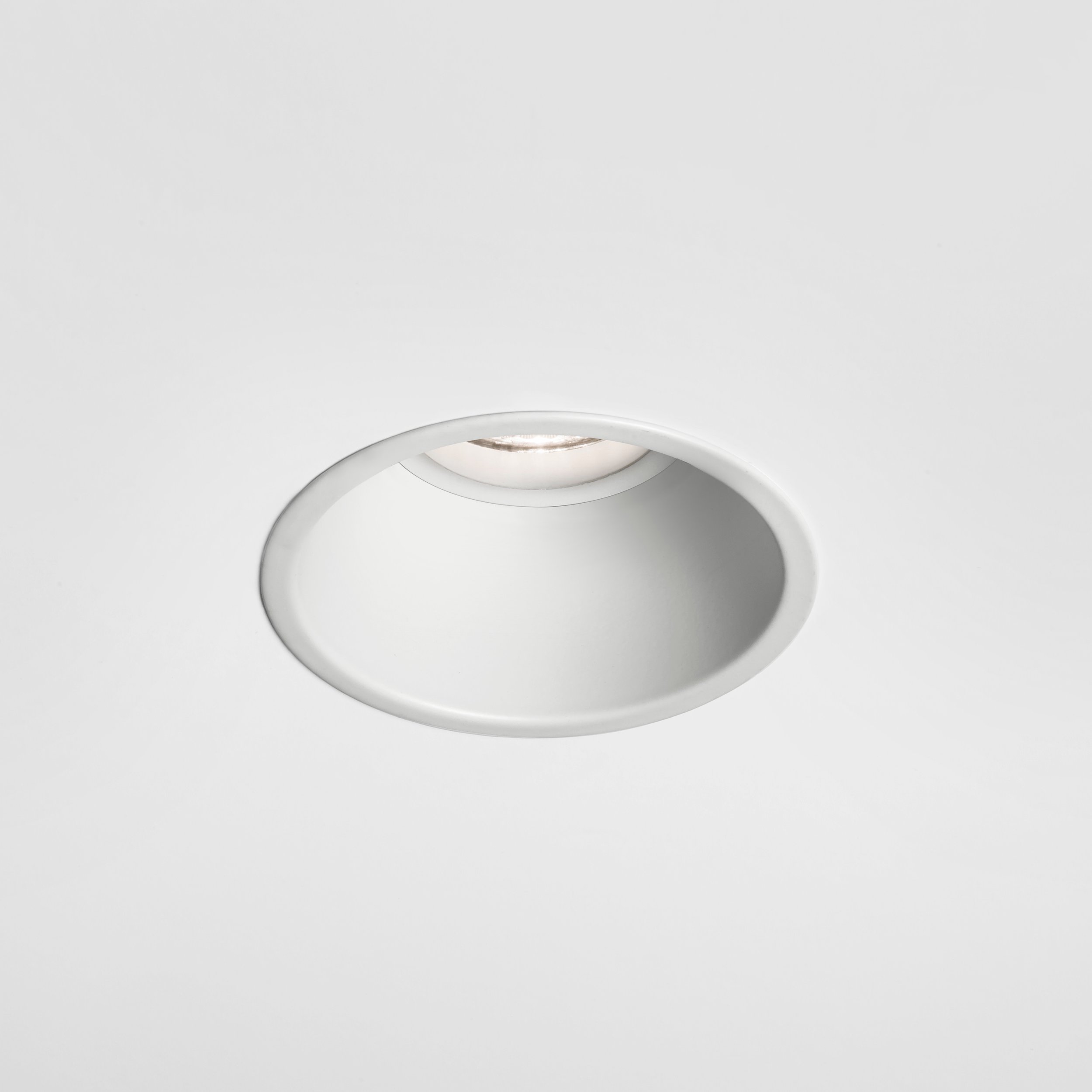

Minima Round LED (1249005) in Textured White - Product Image 1

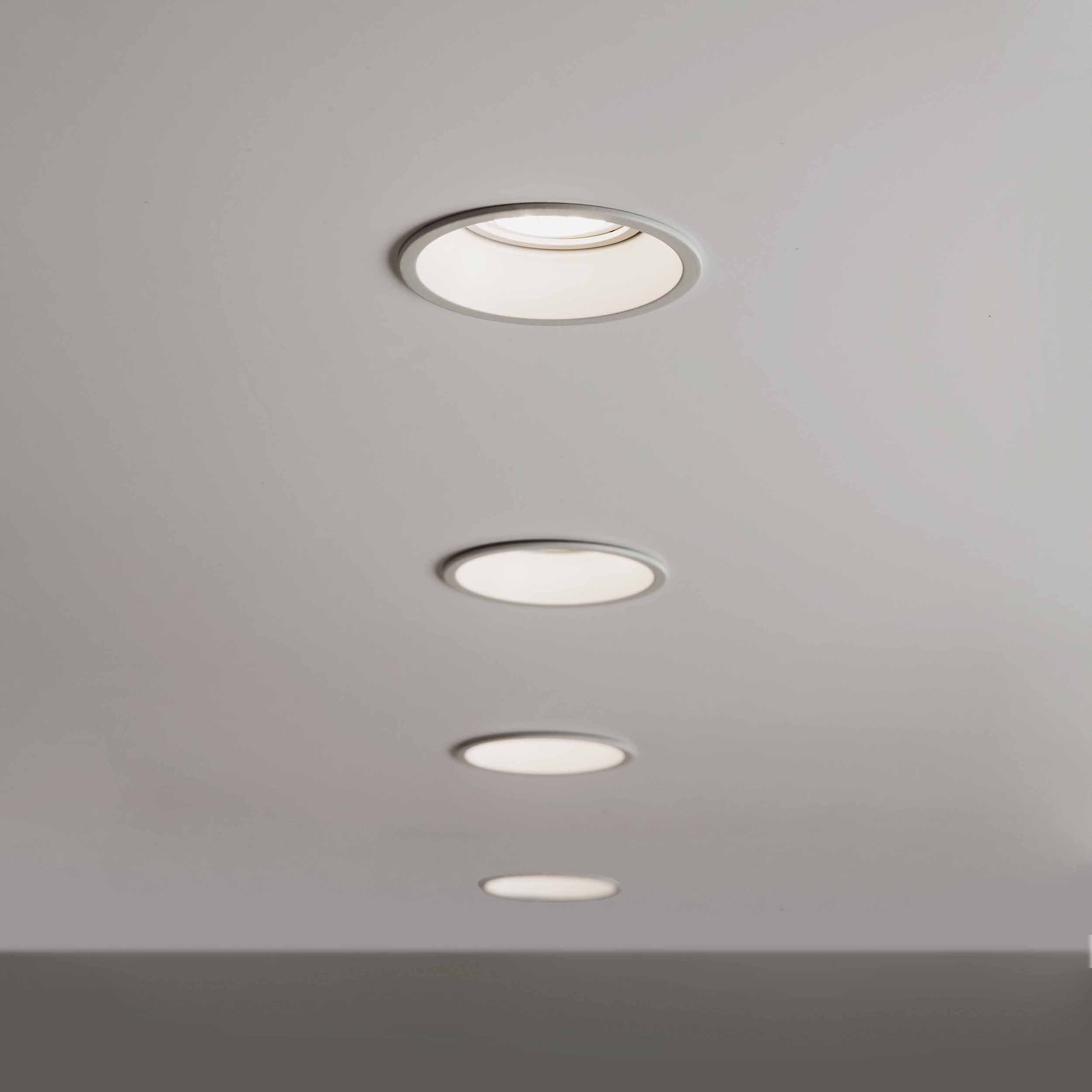

Minima Round LED (1249005) in Textured White - Insitu Image 1

Minima Round LED (1249005) in Textured White - Technical Drawing

Minima Round LED

Textured White 1249005

Forward voltage per product is 9.67V.

spec overview

Lamp Included 1 x 6.8W LED IP20

Where to Buy

Product Care and Cleaning Guide

To maintain this product to its best condition, please download our care and cleaning guide.

Driver Calculator and Driver Guide

To ensure you have the correct amount of fittings per driver, please refer to our driver calculator. Alternatively, for more information on drivers, please refer to our Advanced Guide to LED Lights & Drivers.

Specification

Lamp Required:	No
Lumen Output (LM):	434.2
Colour Temperature (K):	2700
Max Lamp Type & Wattage:	1 x 6.8W LED
Switched:	No
Dimmable:	Yes
Driver Required:	Constant Current 700mA View driver calculator
Class:	Class III - Low Voltage
Power Connection Type:	Wired In
IP Rating:	IP20
Bathroom Zone:	Zone 3
Installation Orientation:	Install after plastering
Recess Depth (mm):	150
Cutout Shape:	Round
Hole Saw Diameter:	76mm / 3in

Downloads

Instructions

SLR Information

Photometric Data

Revit File

3DS File

DWG File

DoC (CE)

DoC (UKCA)

Find a compatible driver

We provide an easy-to-use online tool to calculate which LED drivers are compatible with your chosen luminaire. Follow the steps to determine the right driver for you.

Unsure? Help me choose

View compatible drivers

LED Driver CC 700mA 6-10W (6008022)

LED Driver CC 700mA 10W

6008022

LED Driver CC 350mA 15W/CC 700mA 31W Non-dim (6008072) in White

LED Driver Multi Current Non-dim

6008072

LED Driver CC 250/350/500/700mA CV 12V Phase Dim (6008081) in White

LED Driver Multi Current Phase Dim

6008081

LED Driver CC 250/350/500/700mA DALI Dim (6008097) in White

LED Driver CC 250/350/500/700mA DALI Dim

6008097

LED Driver CC 250/350/700mA 1-10V Dim (6008098) in White

LED Driver CC 250/350/700mA 1-10V Dim

6008098

LED Driver 250-1000mA 110-277V (Built) (6008103) in Light Grey

LED Driver 250-1000mA 110-277V

6008103

LED Driver CC 350/500/700mA 0-10V Dim (6008107) in White

LED Driver CC 350/500/700mA 0-10V Dim

6008107

LED Driver CC 350/500/700mA Phase Dim (6008105) in White

LED Driver CC 350/500/700mA Phase Dim

6008105
