Cromarty 100
Brushed Stainless Steel 1378005
spec overview
Lamp Included 9W LED IP67
This product supersedes 1378002
Product Care and Cleaning Guide
To maintain this product to its best condition, please download our care and cleaning guide.
Product Advisory
Max. drive over weight load: 800kg.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 510 |
| Colour Temperature (K): | 3000 |
| Max Lamp Type & Wattage: | 9W LED |
| Switched: | No |
| Driver Required: | No |
| Class: | Class I - Earthed |
| Power Connection Type: | Wired In |
| IP Rating: | IP67 |
| Bathroom Zone: | Zone 1, 2, 3 |
| Direction Adjustable: | Yes |
| Installation Orientation: | Ground |

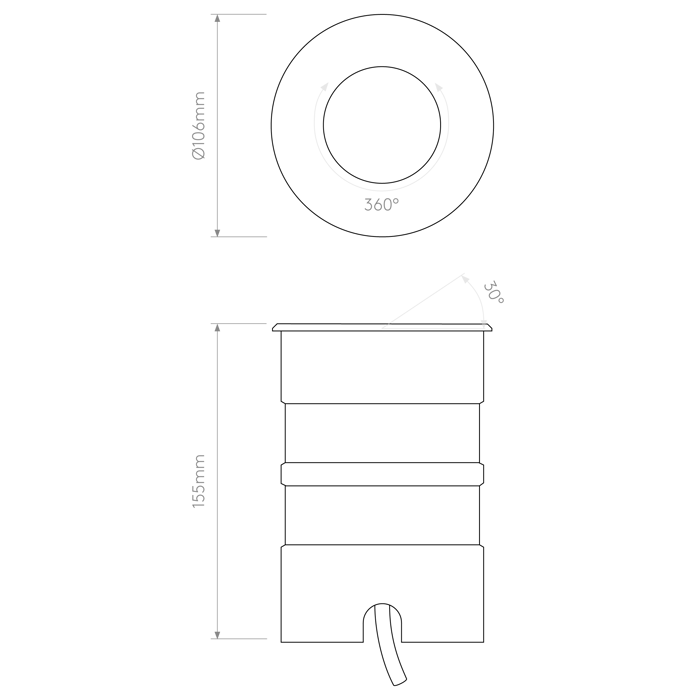

| Recess Depth (mm): | 155 |
| Cutout Shape: | Round |
| Hole Saw Diameter: | 98mm / 3-7/8in |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1378006 |
|
9W LED | 3000K | 90 | 510 | IP67 | Wired In | - | - | - | - | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1378003 |
|
15.2W LED | 3000K | 80 | 973 | IP67 | Wired In | - | - | - | 38.0 | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1378004 |
|
15.2W LED | 3000K | 90 | 1115 | IP67 | Wired In | - | - | - | 15.4 | - | - |
