Lynx Recess
Matt White 1403009
spec overview
Lamp Included 12.1W LED IP20
This product supersedes 1403003
Product Care and Cleaning Guide
To find out more about the material used for this product and how to maintain it to the best condition, please download our care and cleaning guide.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 810 |
| Colour Temperature (K): | 3000 |
| CRI: | 80 |
| Beam Angle (°): | 43.7 |
| Max Lamp Type & Wattage: | 12.1W LED |
| Switched: | No |
| Dimmable: | Yes |
| Type Of Dimmer: | Phase - Leading Edge |
| Driver Required: | No |
| Class: | Class I - Earthed |
| Power Connection Type: | Wired In |
| IP Rating: | IP20 |
| Direction Adjustable: | Yes |

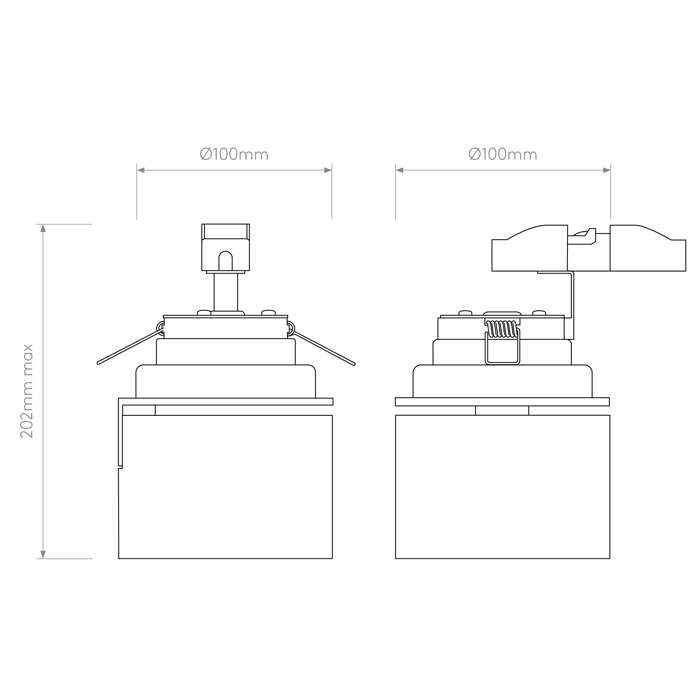

| Recess Depth (mm): | 80 |
| Cutout Shape: | Round |
| Hole Saw Diameter: | 86mm / 3-3/8in |
